Introduction

The interfacial region introduces different kinds of vibrations originating from the different stoichiometry and bonding geometry compared to the bulk environment. However, there has been a limitation in applying ab initio phonon calculations to interfaces due to the excessive computational cost, introduced by their large number of atoms and broken symmetry. The problems are intrinsically inevitable within a 3D DFT framework representing interfacial region by supercells having 3D periodicity, as shown in the following figure. Here, atoms in the vicinity of the interface are shown in green and orange. The atoms embedded in bulk are shown in gray.

_images/Representative_systems.png

Strategy

Among all of these atoms, however, the bonding environment of most atoms located far from the interface is similar to that of the bulk atoms, presenting the same vibrations as the ideal bulk (gray atoms in the above and below figures). Deviation of vibrations from bulk occurs only on the atoms in the vicinity of the interface (green and orange atoms in the above and below figures).

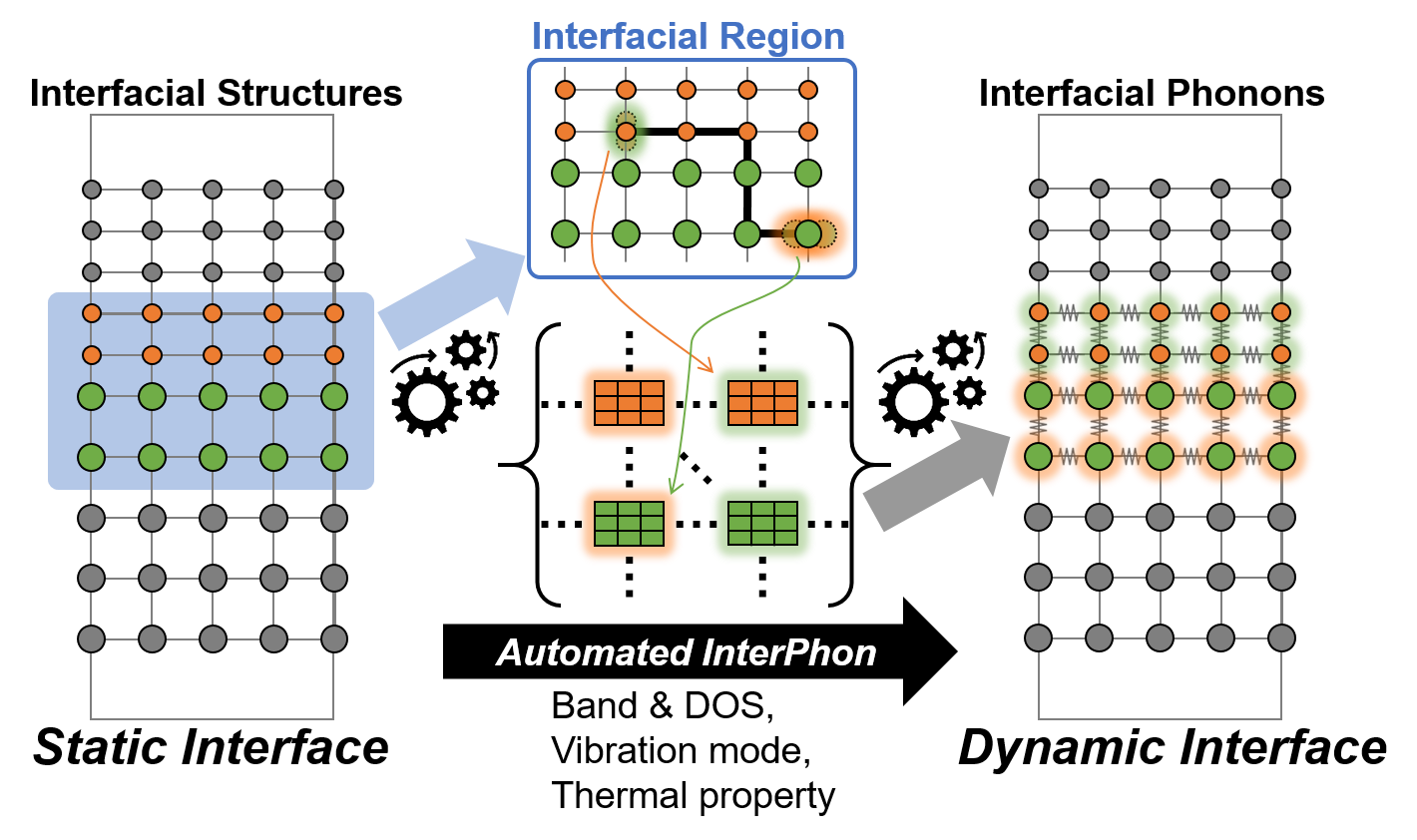

Therefore, the enormous computational cost can be mitigated by limiting the range of phonon calculations to user-defined interfacial region. The following figure illustrates the schematic overview of InterPhon operation.

_images/Graphical_abstracts.png

In contrast to conventional phonon codes for 3D bulk systems such as Phonopy and PHON, InterPhon calculation proceeds with an interfacial region that is smaller than the full simulation box, such that the phonons are calculated only for the atoms in the user-defined interfacial region. In addition, it allows users to define the dimension of periodicity, not limited to 3D.

Consequently, InterPhon enables the efficient extraction of interfacial phonons at arbitrary wave vectors in 1D or 2D reciprocal space, the corresponding real space being an atomic configuration with 1D or in-plane 2D periodicity, by automatically processing the information obtained by 3D-based DFT codes.

Overview

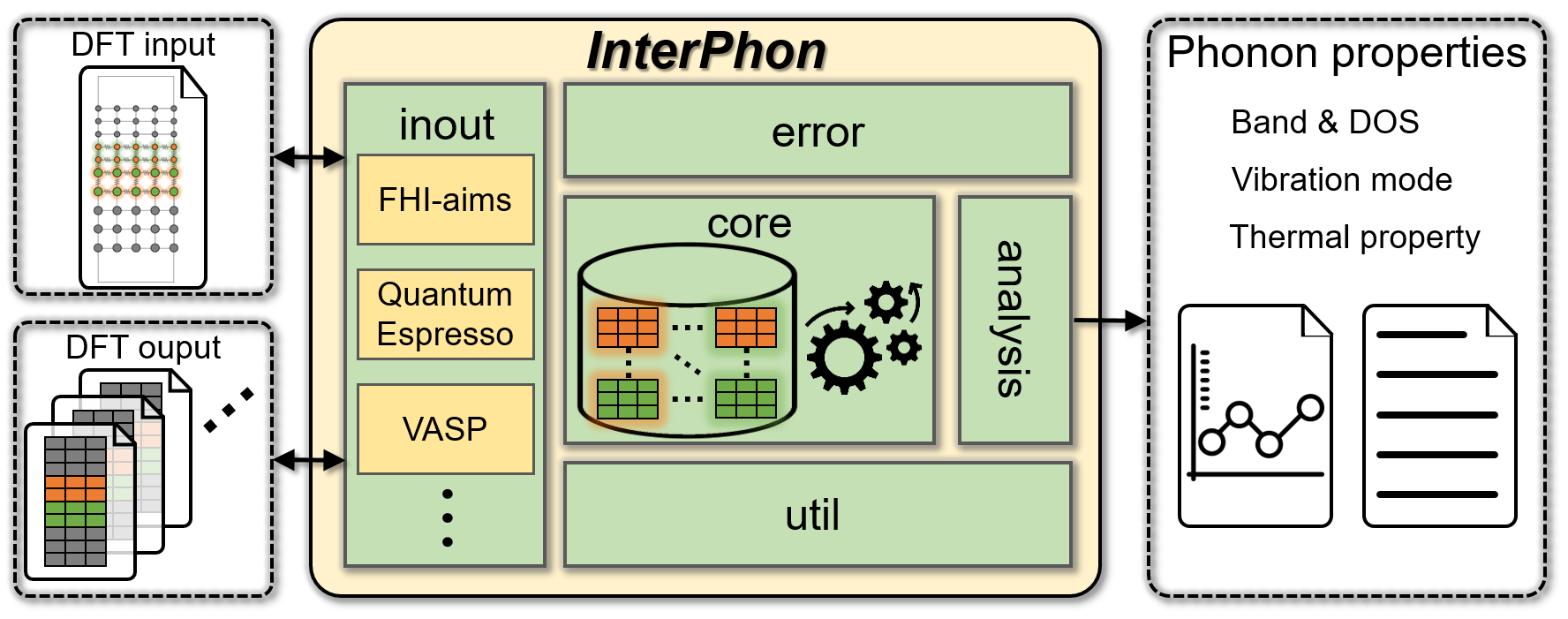

InterPhon operation is based on direct approach using the finite displacement method (FDM). The input required for the program execution are only a DFT structure file representing the atomic structure of interest and the corresponding DFT force file providing the forces acting on each atom, in any DFT code format as shown in the following figure of InterPhon workflow.

_images/InterPhon_workflow.png

The output is given as data files and graphics printing the phonon properties, including the density of states (DOS), band, vibrational motions (phonon mode), and thermal properties (vibrational entropy and free energy).

Architecture

The InterPhon package consists of the following five sub-packages:

  • error sub-package includes error modules defined by developer to guide users.

  • inout sub-package includes inout modules to read and write files in different DFT formats.

  • core sub-package includes core modules responsible for the central processes.

  • util sub-package includes util modules to extend the functionality.

  • analysis sub-package includes analysis modules to characterize phonon properties.

The detailed architecture of the package and interrelation among the sub-packages can be found in modules.
